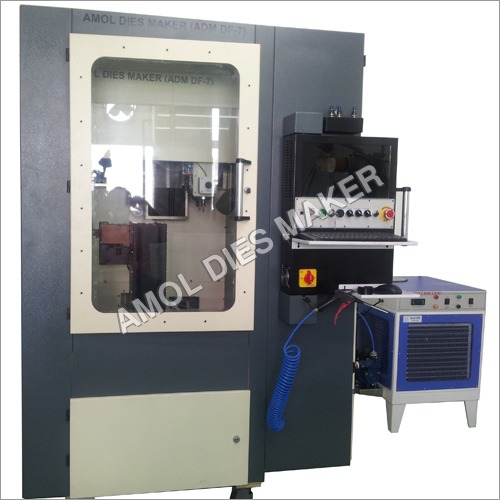

Automatic Bangle Cutting Machine

Automatic Bangle Cutting Machine
Automatic Bangle Cutting Machine
Send Inquiry
Product Code : 01
Brand Name : AMOL
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Control System
  • Frequency Speed Control
  • Cooling Mode
  • Water Cooling
  • Metals Type
  • Gold
  • Feature
  • Simple Control, High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, High Efficiency
Product Description

Amol Dies Maker is a well known manufacturer, exporter and supplier in Mumbai, India. We are known for designing and manufacturing tremendous quality of jewellery machines such as Automatic Bangle Cutting Machine, bangle expanding machine, cutting machines, bangle faceting machines, making machines, diamond tools, white sheet rolling machine, CNC cutting machines and many more. We are widely acclaimed for supplying best quality and high standard of autonomous bangle cutting machines all over the world. The qualities of these machines are high speed, simple control, highly efficient, low consumption of noise and energy, eco friendly and simple installation. These machines are available for our customers in variety of specification to meet their different requirements.

Features:

  • High tensile strength
  • Easy to install and operate
  • Precise functioning


7 axis Computerized Numerical Control Machine with Latest Technology Controlling System and Special User Friendly Software for Flat and Half Round Bangle and Flat Ring Automatic for Easy Product Development, 60000 RPM Pneumatic Tool Changing Spindle for Vertical with Fastest and Highly Precision Servo Motor all axis Control Of the Machine with Powder Coated Stand Specially Design to Get Maximum and Easy Recovery of the Metal, Spray Lubrication System for Cooling of Cutting Tool and Metal.

  • The PC Based CNC Controlled 7 Axis Machine Controller.
  • The Machine Is Equipped With AC Servo Motor For Percies Interpolation In All 7 Axis.
  • Main Vertical Spindles Up To 60000 RPM With Ceramic Cage Bearing For High Precision Accuracies On Maximum RPM.
  • Tool Runover Will Be Maximum 2 micron Fitted With VFD For Flexible RPM Control As Per
  • Design Required.
  • Controller Accept Leading Cad/Cam Generated G Codes & M Codes Directly On Additional Converter Software Required, Also AutoCad, ArtCam, CoralDraw.
  • Tool Offset Table Provided To Reduce Tool Censing Time.
  • Vertical Spindle Indian Make, Servo Motor Schneider German Make, Gearbox Schneider German Make.

Technical Data:

X-Axis Travel

350 mm

Y-Axis Travel

100 mm

Z-Axis Travel

150 mm

B-Axis Travel

360 Degree

C-Axis Travel

360 Degree

Vertical Spindle

0 To 60000 RPM

Horizontal Spindle

0 To 6000 RPM

Phase

1 Ph 240 V AC

Connected Load

7 KW

Job Clamping Manual

Tool Clamping Pneumatic

Air Required

7.5 Bar

Rapid Travel All Axis

6 mtr / Mins

Cutting Feed

3 mtr / Mins

Machine Net Weight

1600 Kg

Power Consumption :

X-Axis

400 Watts

Y- Axis

400 Watts

Z-Axis

1 Kilo Watts

B-Axis

400 Watts

C-Axis

100 Watts

Vertical Spindle

2.2 Kilo Watts

Horizontal Spindle

400 Watts

Trade Information
  • FOB Port
  • Mumbai JNPT
  • Payment Terms
  • Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union
  • Supply Ability
  • 2 Per Month
  • Delivery Time
  • 20 Days
  • Packaging Details
  • Wooden Box
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
