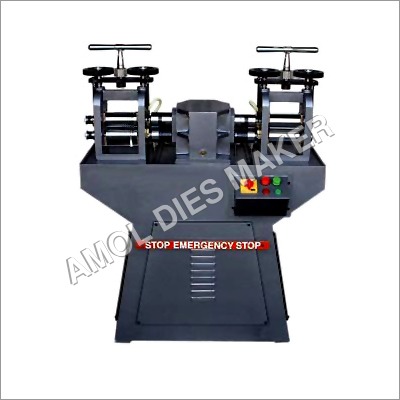

Jewelry Wire Rolling Machine

Jewelry Wire Rolling Machine
Jewelry Wire Rolling Machine
Product Code : 10
Brand Name : AMOL
Product Description

In just a short span of time, we have emerged as one of the leading manufacturers and exporters of an extensive range of Jewelry Wire Rolling Machine. These rolling machines are high in demand in jewellery industry for designing and finishing works. We offer these rolling machines to clients in different specifications for meeting their diverse requirements. This Jewelry Wire Rolling Machine is sternly tested on various standard quality parameters before the final dispatch in market.

Features:

  • High speed functioning
  • Easy operations
  • Long working life

Technical Specification :

Dimension in mm / Model

ADM 001

ADM- 002

ADM 003

Rolls Width x Diameter

101 x 57

127 x 63.5

152 x 76

Wire Grooves From to

0.75 -- 8

0.75 -- 9

0.75 -- 10

Max Sheet Width can be Rolled

60

80

100

Max Apertures of Rolls

25

31

38

No of Half Round Grooves

2

2

2

Max. Roller Speed

7.57 (M/min)

9.42 (m/min)

11.66 (m/min)

Depth Per Rotation of Staring

0.78

0.5

0.66

Emergency Brake

Optional

Optional

Optional

Auto Lubricating System

Optional

Optional

Optional

Power Supply

1 HP / 0.75KW

1 HP / 1.1KW

2 HP / 1.5KW

1 Phase

1 Phase

1 Phase

Machine Dimension in cm

85 x 34 x 117

97 x 42 x 125

107 x 51 x 132

Machine Net Weight

220 KG

295 KG

355 KG

Shipping Dimension in cm

100 x 54 x 132

110 x 70 x 135

120 x 74 x 135

Shipping Weight

300 KG

360 KG

475 KG
